- 主板

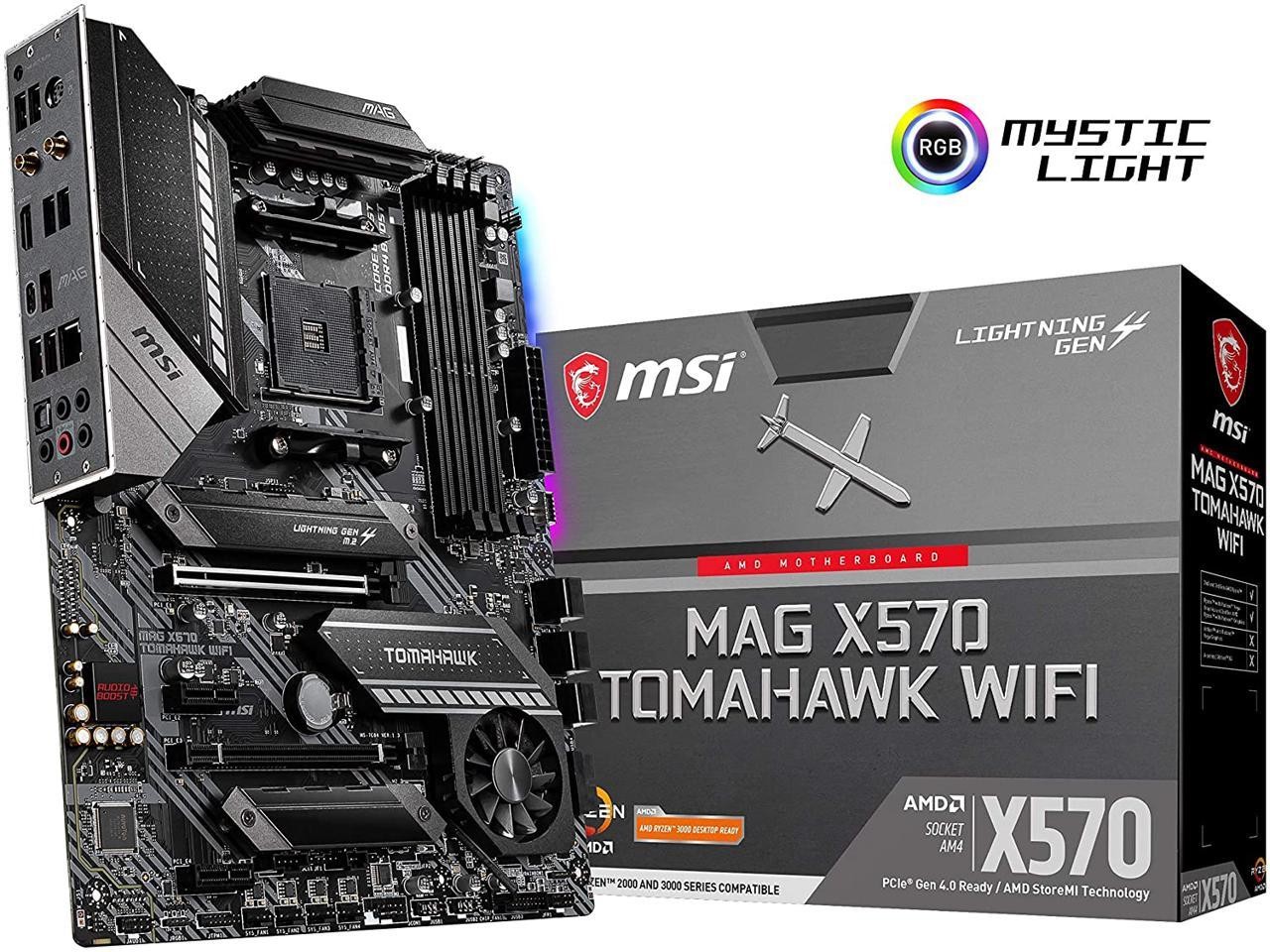

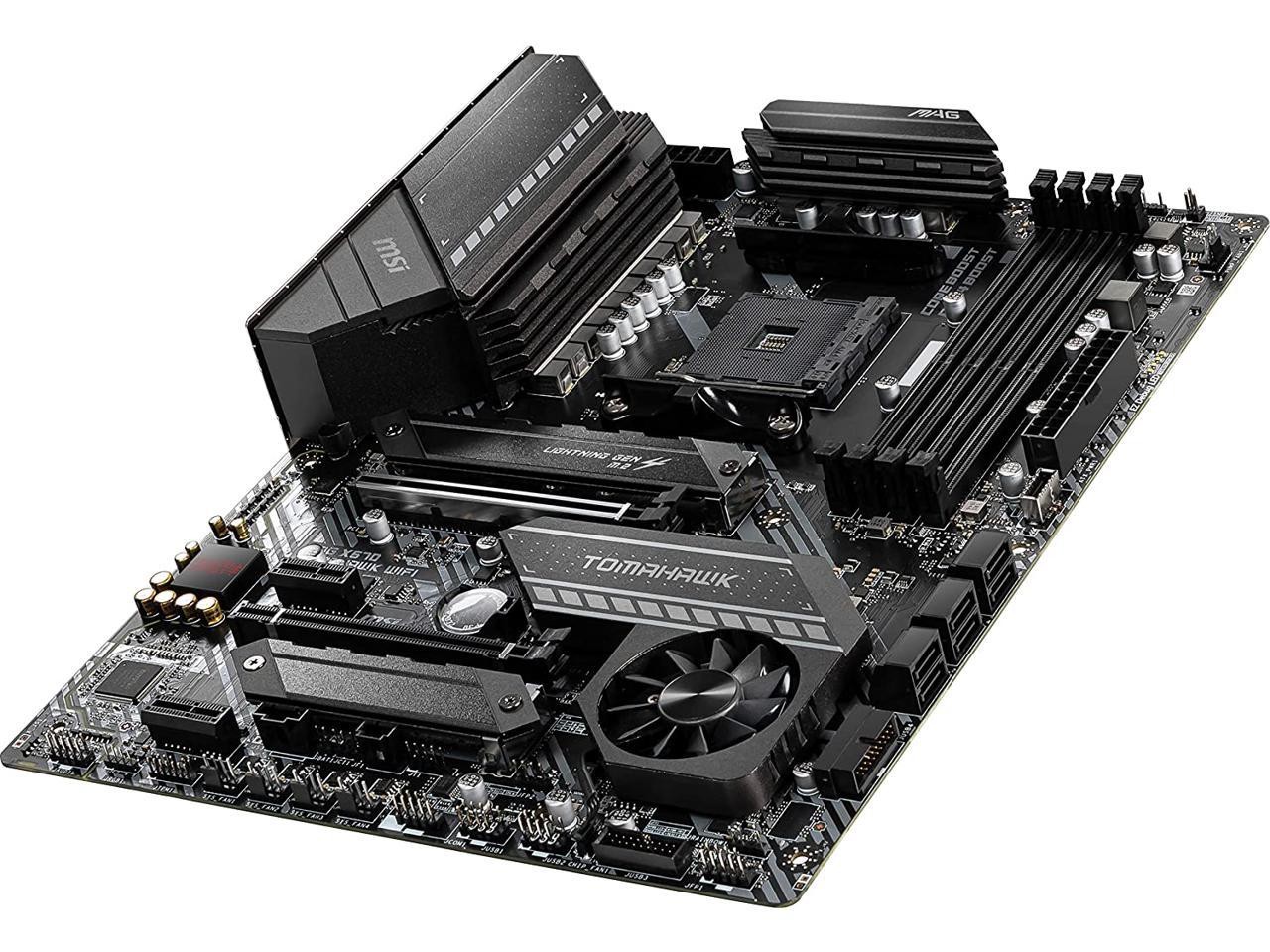

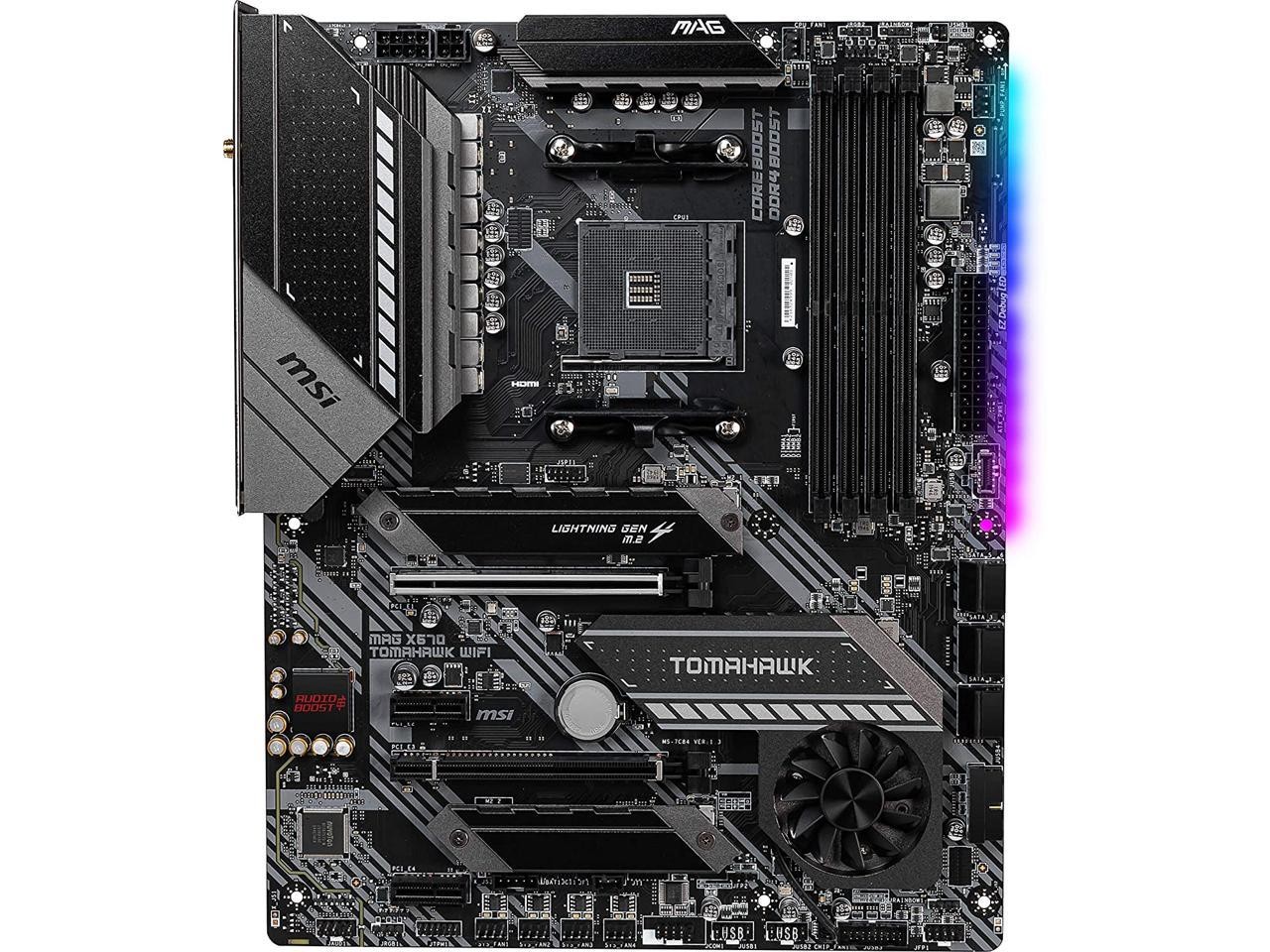

- MSI MAG X570 TOMAHAWK WIFI
MSI MAG X570 TOMAHAWK WIFI
已更新
主板参数
品牌
主芯片组
芯片组描述
采用 AMD X570 芯片组
集成芯片
声卡/网卡
显示芯片
CPU内置显示芯片（需要CPU支持）
音频芯片
集成 Realtek ALC1200 7.1声道音效芯片
网卡芯片
板载 RTL8125B 2.5Gbps网卡
无线功能
Intel® Wi-Fi 6 AX200
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
蓝牙
蓝牙 5.0
CPU 类型
AMD AM4 插槽 Ryzen 2000 和 3000 系列处理器
CPU插槽
内存类型
最大内存容量
128 GB
内存描述
双通道 DDR4 内存技术
3rd Gen AMD Ryzen™ Processors support DDR4 1866 - 3200 Mhz by JEDEC, and 2667 - 4600+ Mhz by A-XMP OC MODE
2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866 - 3200 Mhz by JEDEC, and 2667 - 3466+ Mhz by A-XMP OC MODE
3rd Gen AMD Ryzen™ Processors support DDR4 1866 - 3200 Mhz by JEDEC, and 2667 - 4600+ Mhz by A-XMP OC MODE
2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866 - 3200 Mhz by JEDEC, and 2667 - 3466+ Mhz by A-XMP OC MODE
PCI-E 标准
PCI-E 4.0
PCI-E 插槽
1x PCIe 4.0/3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
2x PCIe 3.0 x1 slots
3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
2x PCIe 3.0 x1 slots
存储接口
6x SATA 6Gb/s ports (from AMD® X570 Chipset)
2x M.2 slots (Key M) 1
M2_1 slot (from AMD® Processor)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD® X570 Chipset)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
2x M.2 slots (Key M) 1
M2_1 slot (from AMD® Processor)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD® X570 Chipset)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

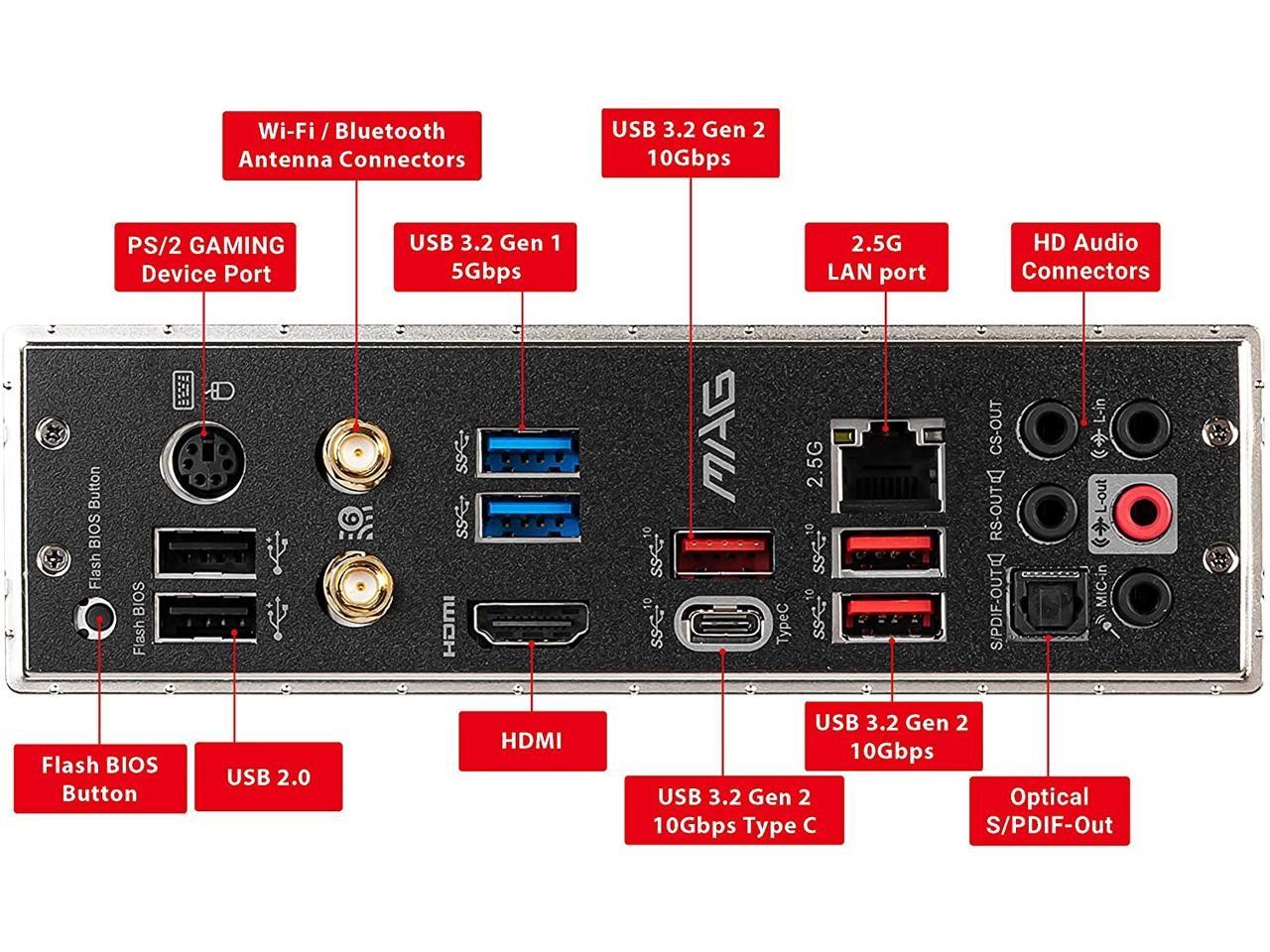

背板接口
- 2 x 天线端口
- 1 x PS/2 键盘 / 鼠标接口
- 1 x HDMI 接口
- 1 x 光纤 SPDIF 数字音频输出端口
- 3 x USB 3.2 Gen2 Type-A 接口 (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C 接口 (10 Gb/s)
- 2 x USB 3.2 Gen1 接口
- 2 x USB 2.0 接口
- 1 x RJ-45 网卡接口 LED 指示灯 (ACT/LINK LED 和 SPEED LED)
- 1 x BIOS 一键更新按钮
- HD 音频插孔: 后置 / 中置 / 低音 / 线性输入 / 前置 / 麦克风
- 1 x PS/2 键盘 / 鼠标接口
- 1 x HDMI 接口
- 1 x 光纤 SPDIF 数字音频输出端口
- 3 x USB 3.2 Gen2 Type-A 接口 (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C 接口 (10 Gb/s)
- 2 x USB 3.2 Gen1 接口
- 2 x USB 2.0 接口
- 1 x RJ-45 网卡接口 LED 指示灯 (ACT/LINK LED 和 SPEED LED)
- 1 x BIOS 一键更新按钮
- HD 音频插孔: 后置 / 中置 / 低音 / 线性输入 / 前置 / 麦克风
板载接口
1个24针ATX主电源连接器
1个8针ATX 12V电源连接器
1个4-pin ATX 12V电源连接器
6个SATA 6Gb / s接口
2个USB 2.0连接器（支持其他4个USB 2.0端口）
2个USB 3.2 Gen 1 5Gbps连接器（支持其他4个USB 3.2 Gen 1 5Gbps端口）
1个USB 3.2 Gen 2 10Gbps Type-C端口
1个4-pin CPU风扇连接器
1个4针水泵连接器
4个4针系统风扇连接器
1个前面板音频连接器
2个系统面板连接器
1个TPM模块连接器
1个串行端口连接器
1个清除CMOS跳线
1个机箱防盗连接器
2个4针RGB LED连接器
2个3针RAINBOW LED连接器
4个EZ调试LED
1个8针ATX 12V电源连接器
1个4-pin ATX 12V电源连接器
6个SATA 6Gb / s接口
2个USB 2.0连接器（支持其他4个USB 2.0端口）
2个USB 3.2 Gen 1 5Gbps连接器（支持其他4个USB 3.2 Gen 1 5Gbps端口）
1个USB 3.2 Gen 2 10Gbps Type-C端口
1个4-pin CPU风扇连接器
1个4针水泵连接器
4个4针系统风扇连接器
1个前面板音频连接器
2个系统面板连接器
1个TPM模块连接器
1个串行端口连接器
1个清除CMOS跳线
1个机箱防盗连接器
2个4针RGB LED连接器
2个3针RAINBOW LED连接器
4个EZ调试LED
主板 板型
外形尺寸
30.5 x 24.4 cm
多显卡技术
2-Way AMD® CrossFire™
供电模式
14相
RAID 功能
Supports RAID 0, RAID 1 and RAID 10
其他特点
CPU /系统/芯片组温度检测
CPU /系统/芯片组风扇速度检测
CPU /系统/芯片组风扇速度控制
CPU /系统/芯片组风扇速度检测
CPU /系统/芯片组风扇速度控制
