- 主板
- ASUS ROG STRIX B450-F GAMING
ASUS ROG STRIX B450-F GAMING
已更新
主板参数
品牌
主芯片组
芯片组描述
采用 AMD B450 芯片组
集成芯片
声卡/网卡
显示芯片
CPU内置显示芯片(需要CPU支持)
音频芯片
集成 ROG SupremeFX 8 声道音效芯片
网卡芯片
板载 Intel I211-AT千兆网卡
CPU 类型
第二代 / 第一代AMD Ryzen / Ryzen with Radeon Vega Graphics
CPU插槽
内存类型
最大内存容量
128 GB
内存描述
支持双通道 DDR4 3600(OC) - 2133 MHz内存
PCI-E 标准
PCI-E 3.0
PCI-E 插槽
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode) *1
3 x PCIe 2.0 x1
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode) *1
3 x PCIe 2.0 x1
存储接口
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s埠
AMD Ryzen™ with Radeon™ Vega Graphics Processor :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s埠
AMD B450 chipset :
4 x SATA 6Gb/s埠,
支援Raid 0, 1, 10
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s埠
AMD Ryzen™ with Radeon™ Vega Graphics Processor :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s埠
AMD B450 chipset :
4 x SATA 6Gb/s埠,
支援Raid 0, 1, 10

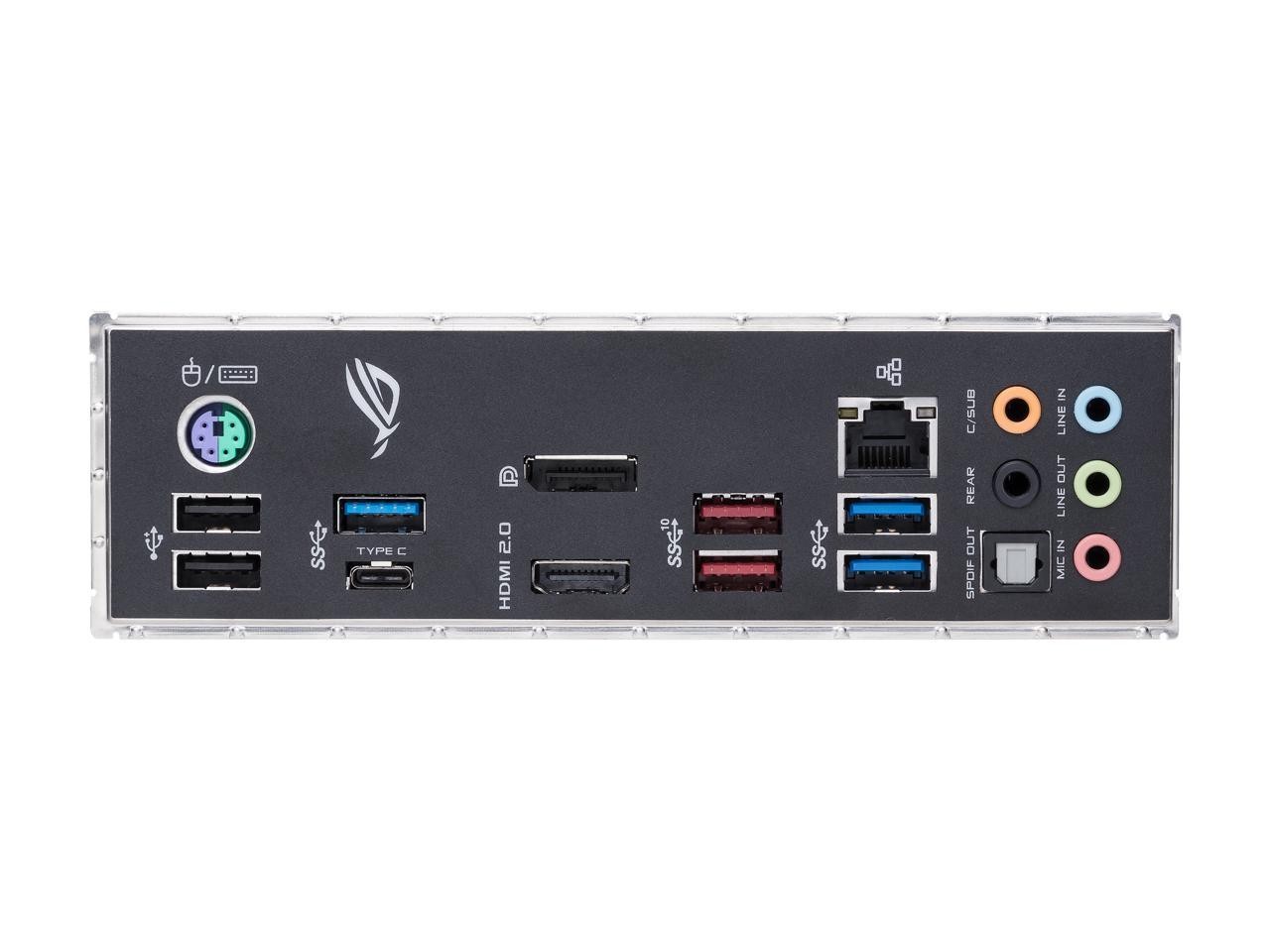

背板接口
1 x PS/2 鍵盤/滑鼠連接埠
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) 連接埠
1 x 光纖 S/PDIF 輸出
5 x 音訊插孔
2 x USB 3.2 Gen 2 (紅色)Type-A,
4 x USB 3.2 Gen 1 (藍色)
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) 連接埠
1 x 光纖 S/PDIF 輸出
5 x 音訊插孔
2 x USB 3.2 Gen 2 (紅色)Type-A,
4 x USB 3.2 Gen 1 (藍色)
2 x USB 2.0
板载接口
1 x USB 3.0 接頭支援額外的 2 USB 3.0 連接埠
2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠
1 x COM 接頭連接埠
6 x SATA 6Gb/s 接頭
1 x CPU 風扇接頭
3 x 機殼風扇接頭
2 x Aura RGB Strip Headers
1 x 24-pin EATX 電源接頭
1 x 前面板音訊接頭 (AAFP)
1 x 系統面板
1 x 熱感測器接頭
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x Clear CMOS 跳線
1 x CPU OPT Fan connector(s)
1 x AIO_PUMP connector
1 x 8-pin EATX 12V Power connectors
2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠
1 x COM 接頭連接埠
6 x SATA 6Gb/s 接頭
1 x CPU 風扇接頭
3 x 機殼風扇接頭
2 x Aura RGB Strip Headers
1 x 24-pin EATX 電源接頭
1 x 前面板音訊接頭 (AAFP)
1 x 系統面板
1 x 熱感測器接頭
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x Clear CMOS 跳線
1 x CPU OPT Fan connector(s)
1 x AIO_PUMP connector
1 x 8-pin EATX 12V Power connectors
LED 灯光
可编程 RGB
主板 板型
外形尺寸
30.5 x 24.4 cm
多显卡技术
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
支援 AMD 3-Way CrossFireX™ 技術
支援 AMD 3-Way CrossFireX™ 技術
供电模式
10+2 相
